Luke Healey's Epson 3170 Scanner Advice:

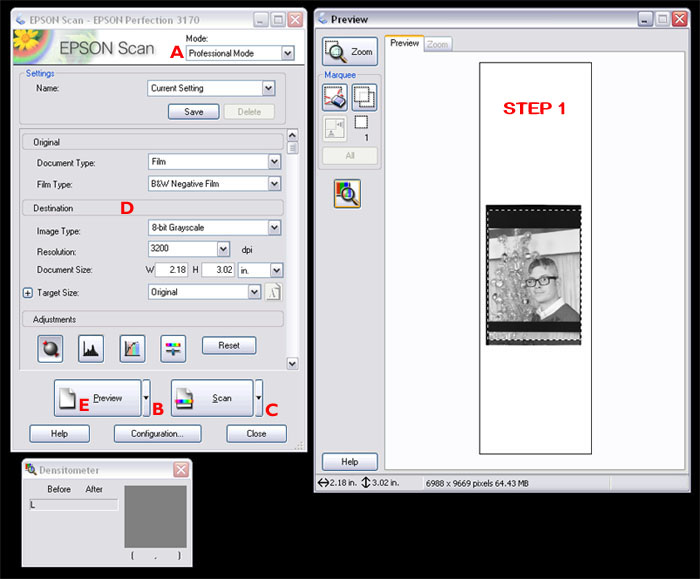

Step 1: Scanner software checklist
  • A: Set the software to Professional Mode
  • B: Set preview style to 'Normal'
  • C: In File Settings set change the Image Format to tiff and no compression
  • D: Set your Document and Film Types. Set your preferred Resolution and Image Type. Set your Target Size to Original
  • E: Click preview to check out your negative
  • Turn off any settings for Digital ICE or Sharpening, etc...

Step 2: Selecting your target
  • A: Select your target from the film. Notice that the levels automatically balance.

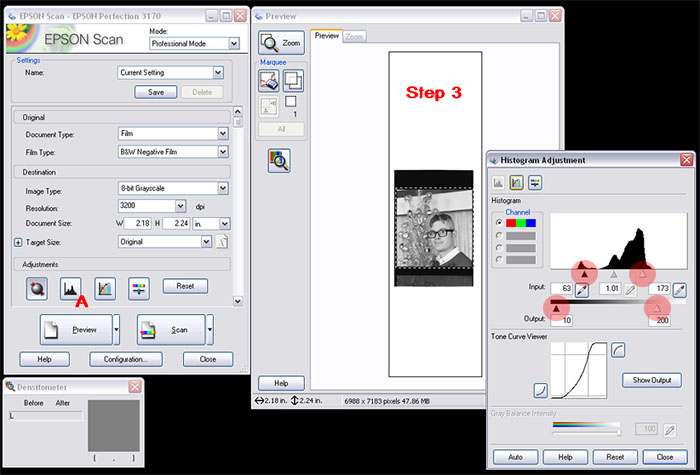

Step 3: Bring up the Histogram Adjustment
  • A: Click on the Histogram button. Make note of the default settings.

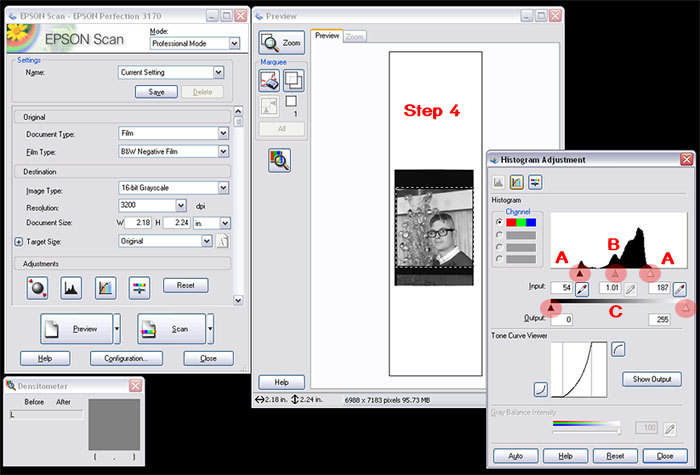

Step 4: Tweak the Histogram
  • Each photo has a unique histogram
  • A: Move the Input sliders for shadows and highlights near the edge of the histogram.
  • B: Move the Input slider near the center of the histogram for the midtones until it looks good to you
  • C: Move the Output shadow and highlight sliders all the way to the edges

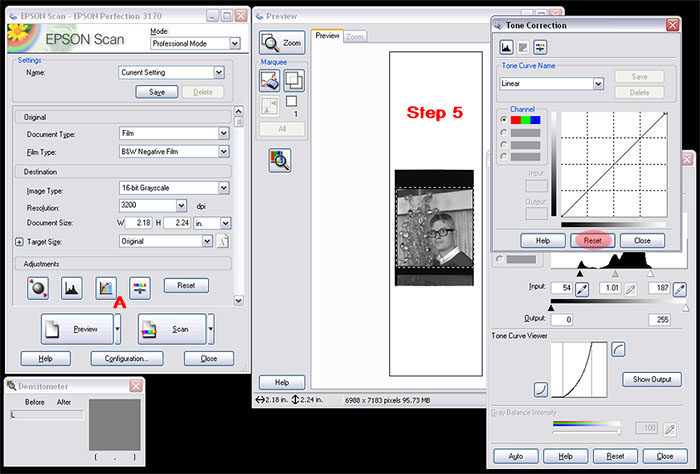

Step 5: Bring up the Tone Correction
  • Each photo has a unique histogram
  • A: Click the Tone Correction button. Reset it to linear if necessary

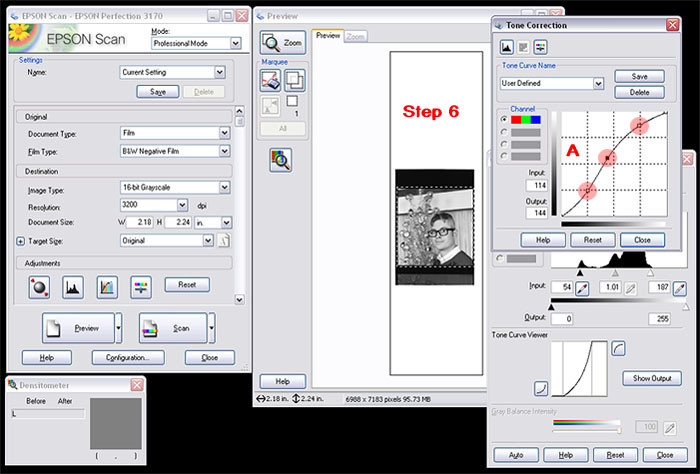

Step 6: Tweak the Curve
  • Tone Correction is similar to Curves in Photoshop
  • A: Adjust the Tone Correction curve until you like the effect

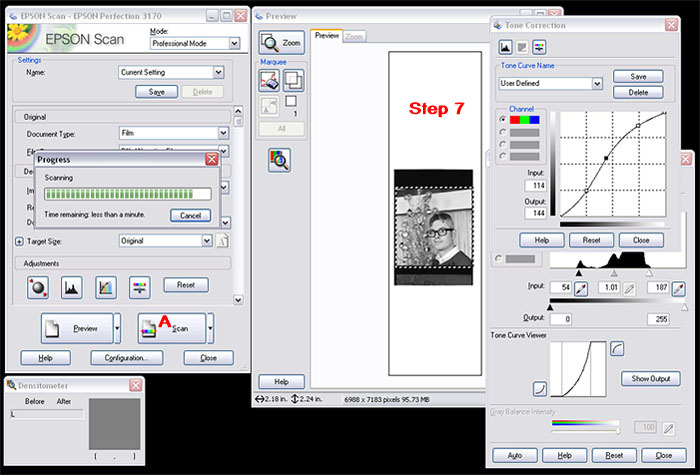

Step 7: Scan!
  • A: Click Scan and wait for your tiff image

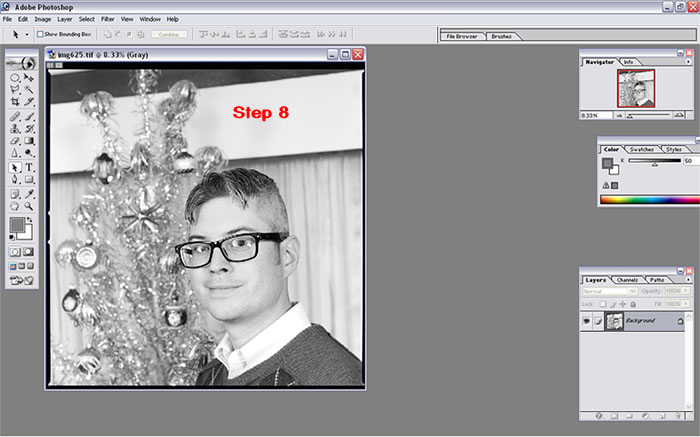

Step 8: Final Edit
  • Open your scanned tiff image in your photo editing software
  • Try an 'Auto Levels' action
  • Or try to adjust the curves slightly
  • Remove scratches or dust with a clone tool
  • Size down and save as .jpg for presentation on the web

Step 9: Enjoy your photo online
